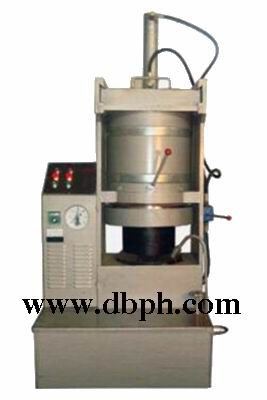

Introduce
This system adopts the electric motor operating, hydraulic driving,Saving the labor . Only require Once pressing quickly .
Equipped with the temperature control power,which ensure that the oil yield, The electrical installation is more humane, open and cut-off automatically.
Suitable for the processing of various kinds of vegetable oil-bearing crops,such as the rapeseed/canola, peanut kernel, soybean, olive,walnut kernel, maize germ, rice bran, teaseed, sallow thron seed, chinaberry seed, rubber seed, china pepper seed, tomato seed, water melon seed, grape seed, flax seed, oenothera seed, pepper seed, castor seed, orange seed, cocoa bean, coffee bean, perilla,almond kernel,peach seed kernel,rice bran,etc.
Also used for animal oil press, clay press, a variety of chemical raw materials ,dehydrated, off the juice ,etc.
Main model & Spec
Model |
Working pressure |
Piston stroke (mm) |
Piston (mm) |
Feeding seeds each(kg) |
Capacity (kg/8h) |
Electrical coil |
Power (kw) |
HPY-230 |
120T |
500 |
Ø230 |
10 |
25 |
4kw |
1.5 |
HPY-400 |
Ø400 |
80 |
80 |
||||
HPY-450 |
150T |
Ø450 |
110 |
120 |
2.2 |
||
HPY-450II |
700 |
150 |
150 |
3 |
|||
HPY-500 |
300T |
Ø500 |
200 |
200 |
4 |
