General Description:

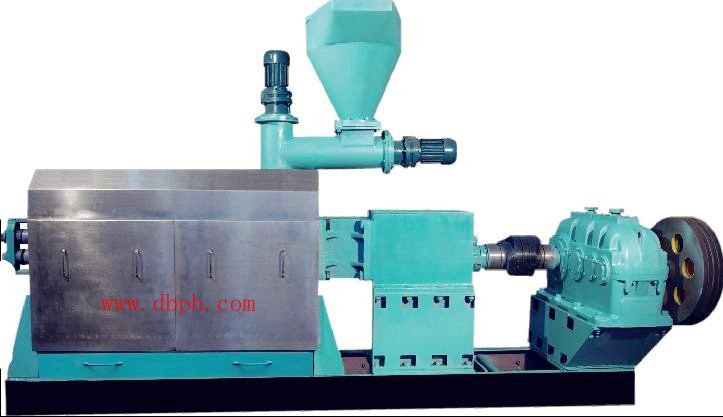

The Two-shafts Low-temperature Expeller is a new product which is invented from our brand new technology. In the pressing cage there are two parallel pressing shafts with contracry rotating direction. The design can get high compression ratio and oil gain, the oil pass can self clean. The machine is suitable for both low and high temperature pressing of vegetable oil-bearing crops such as husked rapeseed kernel, peanut kernel, sunflower seed kernel, chinaberry seed kernel, perilla seed kernel, etc. It's quite good for the pressing of special oil-bearing crops.

Also be suitable for pressing the fruit,vegtable,and separating for the solid and liquid in the field of medicine and chemical .

Features:
This system is applicable for both low-temperature and high-temperature oil production, under reasonable processing condition, it has below highlights:
1. Reasonable structure, easy maintenance, sturdy and durable;
2. Self-equipped temperating condition;
3. Automatic continuously working.

Main type and data


Model

Capacity

(t/24h)

Power (kw)

Residue oil of cake

Weight (t)

Outsize (mm)

HPL2-12

Cold pressing >10

Hot pressing >15

15+1.1+0.37+0.04

De-hull,

cold pressing:

6%～16%



Un-hulling,

cold pressing:

4.5%～7.5%



Hot pressing:

4.5%～7%

3.5

3300*670*1850

HPL2-16

Cold pressing >18

Hot pressing>30

30+3+0.55+0.04

=33.59

8.3

3780*1500*2400

HPL2-20

Cold pressing≥35

Hot pressing≥50

45+(2.2*2)+(0.75*2)+0.75+0.04

=51.69

9.6

4300*1900*2300

HPL2-28

Cold pressing≥60

Hot pressing≥100

75+(3*2)+(0.55*2)+0.75+0.04*2

=82.93

12.5

4832*2917*3236
